Controlled climate is essential on ships. That’s why HI AIR KOREA(HAK) offers a wide range of AIR TERMINAL DEVICE altogether to assure good air movement and equal humidity levels inside the ship.

The AIR TERMINAL DEVICE lines up by HAK for marine air conditioning systems is specially designed for optimum supply of conditioned air to specific areas on ships. For each type of HAK system(Twin-pipe, Single-pipe, Re-heat); there’s a comprehensive range of cabin unit type available depending on the application i.e. for bulkhead mounting or ceiling suspension, or units supplying the conditioned air through a grille or a ceiling diffuser.

HAK AIR TERMINAL DEVICEs are of compact and customizable design, sizes to suit the client’s ventilation requirements as well as the heating and cooling loads. All units have an air flow control device which the air flow delivered can be varied from nil to a predetermined maximum. Aside from that, the unit intended for Twin-pipe and Re-heat installations is provided with individual temperature control, independent of the air flow control and special attention has been considered to sound attenuation. From experience, the resulting sound levels in ship’s accommodation are very satisfactory.

Clients are rest assured that HAK AIR TERMINAL DEVICE is bringing quality air inside!

  • FEATURES

    CABIN UNITS

    CONSTRUCTION
    • Air spigot for connection to the air duct system which supplies conditioned air from the air handling unit
    • Sound trap, made of inorganic material reducing the noise from the duct system and throttling damper to the requested sound level
    • Control lever for the air flow regulating device
    • Attenuator box in galvanized sheet steel material
    • Diffuser in cold rolled steel material
    • The diffuser is painted with a traffic white, code RAL 9016 or can be supplied in any color, if desired
    • Certificate : compliance to module B & D of Marine Equipment Directive 2014/90/EU(“B-0/B-15” CLASS DIVISIONS, CEILINGS, FIRE INTEGRITY)
    ACCESSORIES
    • Thermostat is designed to provide automatic on/off control for re-heater cabin unit

    RETURN & EXHAUST GRILLE

    CONSTRUCTION
    • Air spigot for connection to the air duct system
    • Attenuator box in galvanized sheet steel material
    • Grille in aluminum material
    • The grille is painted with a silver, code RAL 9006 or can be supplied in any color, if desired

    PUNKAH LOUVER

    By providing accurate directional control of the air flow, localized air movement is increased in poorly conditioned zones or dead air spaces - improving working conditions for personnel, equipment and industrial processes.

    CONSTRUCTION
    • Nozzle & diffuser in aluminum material
    • The nozzle is painted with a silver

    SUPPLY NOZZLE(HT)

    Defrosting nozzle for window

    CONSTRUCTION
    • Nozzle & sleeve in plastic
    • The nozzle is painted with a grey

    EXHAUST NOZZLE(KU 100, KU 160)

    CONSTRUCTION
    • Diffuser & sleeve in cold rolled steel material
    • The diffuser is painted with a signal white, code RAL 9003 or can be supplied in any color, if desired
  • OPTIONS

    CABIN UNITS

    • Attenuator box in stainless steel material
    • Angles for suspension of the attenuator box

    RETURN & EXHAUST GRILLE

    • Attenuator box in stainless steel material
    • Angles for suspension of the attenuator box
    • Balancing damper
  • SELECTION

    AIR TERMINAL DEVICE

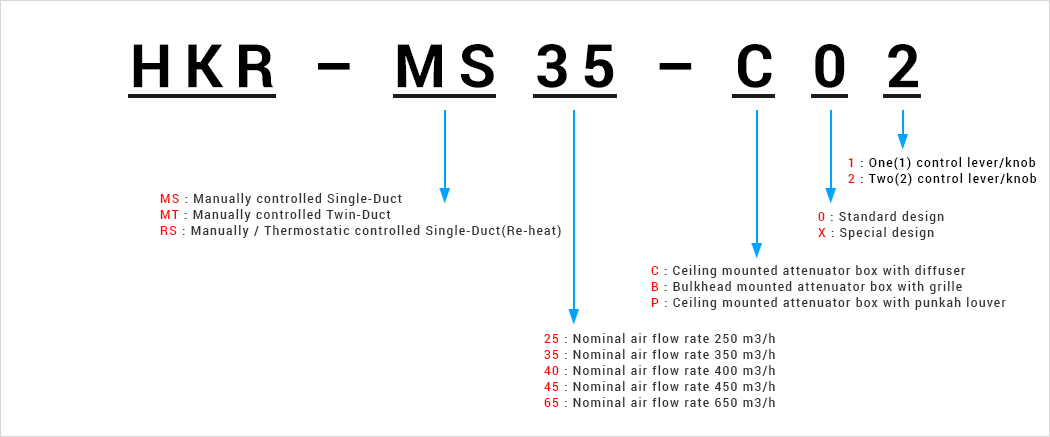

    DESCRIPTION MODEL CERTIFICATE APPLICATION REMARK
     CABIN UNITS HKR-RS25 MED Module B & D CABIN, OFFICE, ETC RE-HEAT
    HKR-RS35 MED Module B & D CABIN, OFFICE, ETC RE-HEAT
    HKR-RS45 MED Module B & D CABIN, OFFICE, ETC RE-HEAT
    HKR-MS25 MED Module B & D CABIN, OFFICE, ETC
    HKR-MS35 MED Module B & D CABIN, OFFICE, ETC
    HKR-MS40 N/A OFFICE, MEETING ROOM, ETC
    HKR-MS65 N/A OFFICE, MEETING ROOM, ETC
    HKR-MT25 MED Module B & D CABIN, OFFICE, ETC
    HKR-MT35 MED Module B & D CABIN, OFFICE, ETC
    HKR-DLQ-AG N/A MEETING ROOM, RECREATION, ETC
     RETURN & EXHAUST
    GRILLE
    HKR-MLG55L N/A CORRIDOR, MEETING ROOM, ETC
    HKR-MLG55S N/A CORRIDOR, MEETING ROOM, ETC
    HKR-MLG90L N/A CORRIDOR, MEETING ROOM, ETC
    HKR-MLG90S N/A CORRIDOR, MEETING ROOM, ETC
    HKR-MCJ60 MED Module B & D CABIN, OFFICE, ETC
    SUPPLY
    PUNKAH LOUVER
    PK No.6 N/A SPOT COOLING, ETC
    SUPPLY NOZZLE HT N/A DEFROSTING NOZZLE FOR WINDOW
     EXHAUST NOZZLE KU 100 N/A TOILET, SHOWER, ETC
    KU 160 N/A TOILET, SHOWER, ETC
  • DOCUMENTS

    For more information, please contact the sales manager.

    3 MERCHANT_AIR TERMINAL DEVICE DOWNLOAD
    2 Standard Drawing Air Terminal Unit DOWNLOAD
    1 Sound Attenuator Performance Test Sheet DOWNLOAD
