AXIAL FLOW FAN
HI AIR KOREA(HAK) AXIAL FLOW FAN is specially designed for robust design with high efficiency. They are available in wide variety all types and capacities and for all purposes.
AXIAL FLOW FAN is built considering size, efficiency, reliability and maintainability. AXIAL FLOW FAN is cost effective solution that can comply with the stringiest requirements of global standards.
HAK AXIAL FLOW FAN is specifically constructed to operate in various offshore conditions.
Use of AXIAL FLOW FAN can maintain desired room conditions by mechanical ventilation with smaller space and lower cost than those of the CENTRIFUGAL FAN.
- FEATURES
GENERAL
- HI AIR KOREA AXIAL FLOW FAN impellers are manufactured by combination of various parts in order to adjust blade angle for best performance, fan efficiency and sound level.
- Impeller hub shell and blades are manufactured by aluminium alloy.
AWA/HWA
- AWA/HWA(Rigid type AXIAL FLOW FAN) is a robustly constructed fan with a downstream guide vane arrangement designed for duct in-line installation.
- The standard range comprises 15 sizes with impeller diameters from 350 to 2,000 mm and 8 hub diameters from 150 to 800 mm.
- HWA is high efficiency type with different impeller design and high precision technology.
AKA/HKA
- AKA/HKA(Swing-out door type AXIAL FLOW FAN) is a sturdy axial flow fan specially designed for easy motor maintenance with a downstream guide vane arrangement designed for duct in-line installation.
- The standard range comprises 13 sizes with impeller diameters from 500 to 2,000 mm and 8 hub diameters from 280 to 800 mm.
- HKA is high efficiency type with different impeller and high precision manufacture.
- OPTIONS
- Anti-vibration mount
- Inlet cone with protective screen
- Flexible connection
- Duct spigot
- Counter flange
- Counter flange with protection screen
- Mushroom ventilator
- Anti-spark track
- Ex-proof design
- Stainless steel fan casing
- EN 14986 design
-
CAPACITIES

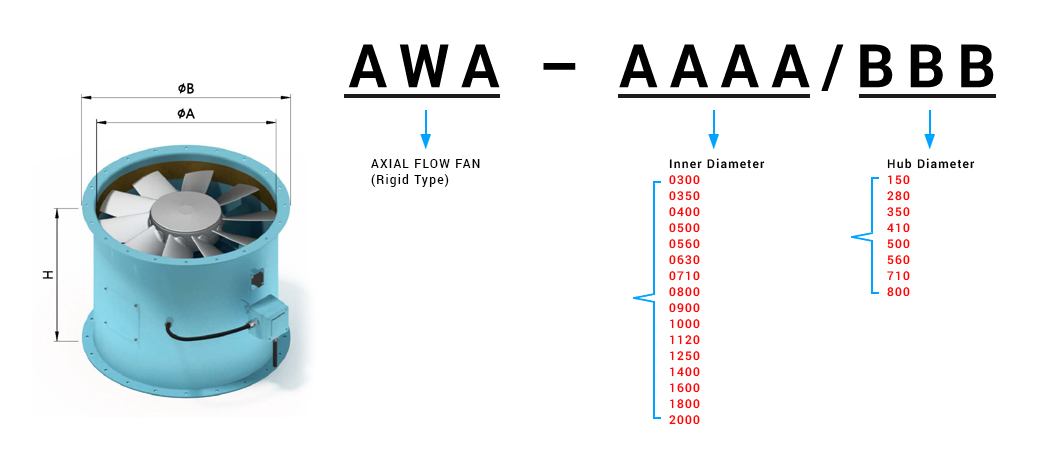

AWA
Unit : [mm]
SPEC' ØA ØB H MODEL (I.D) (O.D) AWA-0300 305 424 400 AWA-0350 360 460 520 AWA-0400 400 498 520 AWA-0500 500 622 620 AWA-0560 560 682 620 AWA-0630 630 752 620 AWA-0710 710 832 710 830 AWA-0800 800 922 830 930 AWA-0900 900 1,022 930 AWA-1000 1,000 1,152 900 1,120 AWA-1120 1,120 1,272 900 1,120 AWA-1250 1,250 1,402 1,120 AWA-1400 1,400 1,552 1,120 AWA-1600 1,600 1,752 1,230 1,500 HWA

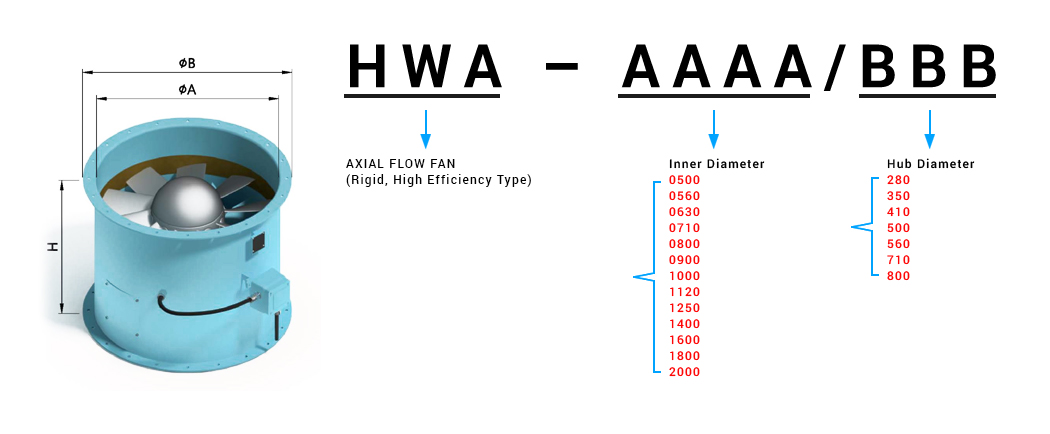

Unit : [mm]
SPEC' ØA ØB H MODEL (I.D) (O.D) HWA-0500 500 622 710 HWA-0560 560 682 710 HWA-0630 630 752 830 HWA-0710 710 832 830 HWA-0800 800 922 930 HWA-0900 900 1,022 930 HWA-1000 1,000 1,152 900 HWA-1120 1,120 1,272 900 HWA-1250 1,250 1,402 1,120 HWA-1400 1,400 1,552 1,120 HWA-1600 1,600 1,752 1,230 AKA

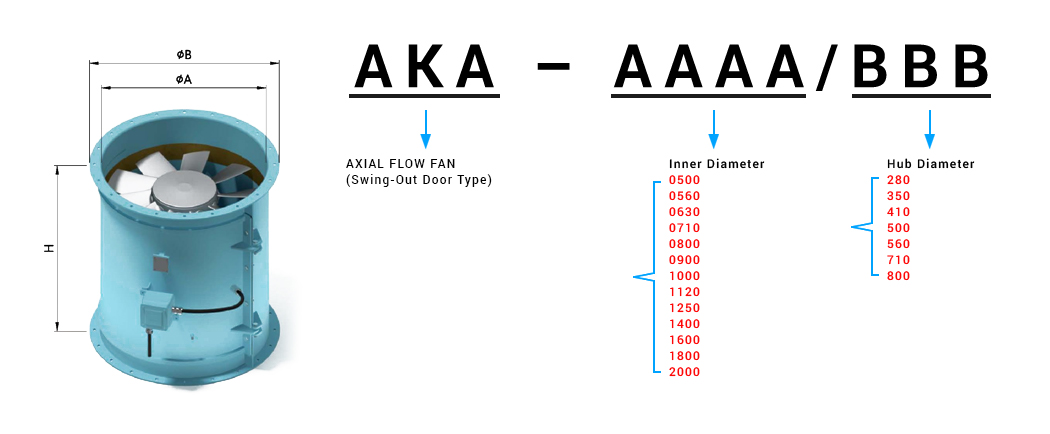

Unit : [mm]
SPEC' ØA ØB H MODEL (I.D) (O.D) AKA-0400 400 498 710 AKA-0500 500 622 710 830 AKA-0560 560 682 830 AKA-0630 630 752 830 AKA-0710 710 832 930 1,150 AKA-0800 800 922 930 1,150 AKA-0900 900 1,022 1,150 1230 AKA-1000 1,000 1,152 1,230 1500 AKA-1120 1,120 1,272 1,230 1,500 AKA-1250 1,250 1,402 1,230 1,500 AKA-1400 1,400 1,552 1,500 AKA-1600 1,600 1,752 1,700 HKA
Unit : [mm]
SPEC' ØA ØB H MODEL (I.D) (O.D) HKA-0500 500 622 830 HKA-0560 560 682 1,150 HKA-0630 630 752 1,150 HKA-0710 710 832 1,150 HKA-0800 800 922 1,150 HKA-0900 900 1,022 1,500 HKA-1000 1,000 1,152 1,500 HKA-1120 1,120 1,272 1,230 HKA-1250 1,250 1,402 1,500 HKA-1400 1,400 1,152 1,500 HKA-1600 1,600 1,752 1,700 - DOCUMENTS
