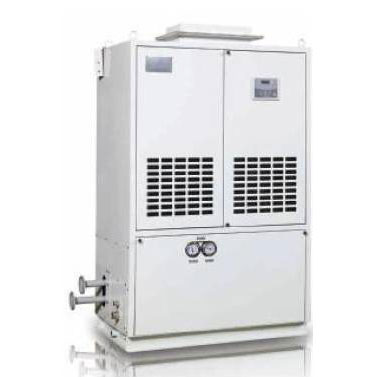

PACKAGED AIR CONDITIONING UNIT

For medium size cooling capacity requirements, look no further, HI AIR KOREA(HAK) PACKAGED AIR CONDITIONING UNIT offers total reliable performance by one self-contained unit.

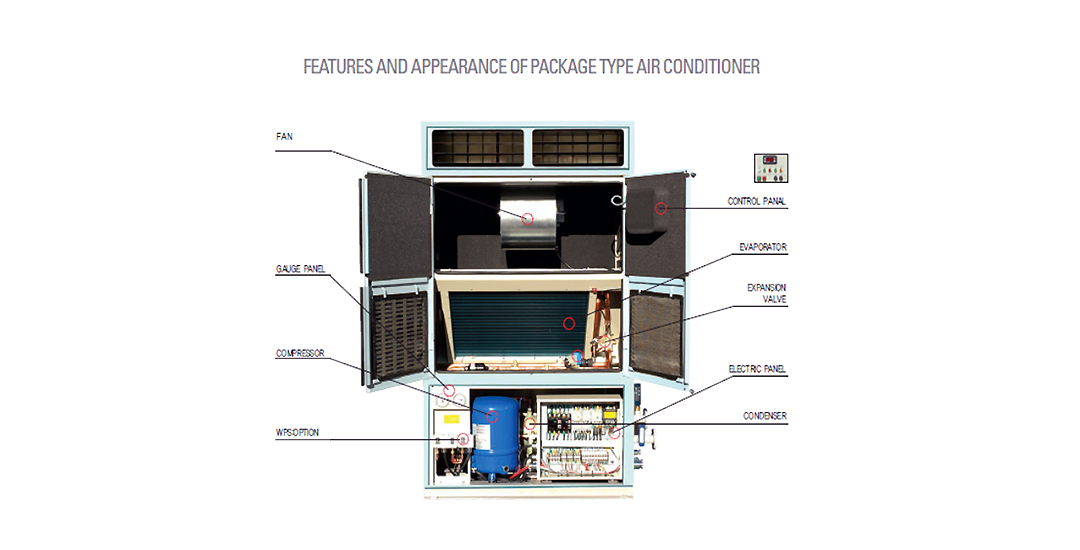

The PACKAGED AIR CONDITIONING UNIT is composed of compressor, condenser, filter, fan, motor, cooling/heating coil and starter on one skid for easy installation.

Simple and compact in design, this all in one piece PACKAGED AIR CONDITIONING UNIT is convenient for engine control rooms, workshops, galley, etc. where local cooling / heating is required apart from the main A/C system.

With its high quality components, HAK PACKAGED AIR CONDITIONING UNIT provides complete air conditioning solution with the best performance.

  • FEATURES

    SELECTION

    • Extensive range of cooling capacities from 3 USRT to 20 USRT
    • Customized design for marine applications

    CONSTRUCTION

    • Simple and compact self-contained assembly designed for installation aboard vessels
    • Steel casing(SS275) with single skin
    • Polyurethane foam insulation
    • High quality integrated components for maximum reliability
      • The fan’s mounting ensures low level of noise and vibrations
      • Built in directly coupled centrifugal fan with motor
      • Washable flat filter is placed in front of the evaporator
      • Copper tube with Aluminum fins cooling coil
      • Equipped with scroll type compressor
      • A cleanable shell and tube type condenser with fresh water cooling
    • Cooling medium : HFC refrigerants(R-404A, R-407C, R-134a), Chilled water
    • Power supply : 380/440/690Vac, 50/60Hz, 3-phase
    • Starter : Mounted on the front door(temp. indicator, push buttons, indicating lamps)
    • Factory assembled, internally wired, fully refrigerant charged, tested under strict quality standards

    MAINTENANCE

    • Easy installation and maintenance
  • OPTIONS
    • Stainless steel casing(SS304 or SS316L) and coating
    • Mineral wool insulation
    • Flexible connections and counter flanges for air intake and outlet
    • Dampers for fresh and return air intake
    • Electric heating coil / Steam heating coil
    • Copper tube with Copper fins cooling coil
    • A cleanable shell and tube(copper/nickel) type condenser for sea water cooling
    • Thermometer for cooling water In/Out
    • Automatic sea water control valve
    • Other refrigerants are available
    • Low noise air conditioners
      • - BLDC fan motor which can change RPM has been adopted
      • - Noise level has been improved by approx. 10 dB(A) than the standard prod
      • - For HIP-05WG Model : from 70 dB(A) to 60 dB(A)
  • CAPACITIES

    LINE UP

    CAPACITY & DIMENSIONS(STANDARD)

    (Design basis : Air inlet 27 ℃ RH 50 %, Air outlet 15 ℃ RH 90 %)_R-407C / Fresh water 36 ℃

    MODEL CAPACITY AIR FLOW RATE Ext. STATIC PRESSURE POWER INPUT DIMENSION
    (mm)
    MIN.SERVICE SPACE
    (mm)
    (kW) (㎥/h) (Pa) (kW) WIDTH HEIGHT DEPTH FRONT RIGHT LEFT REAR
    WATER COOLED GRILLE INLET / GRILLE OUTLET
    HIP-03WG* 10.5 1,800 N/A 2.8 1,000 1,750 600 1,000 1,000 300 300
    HIP-05WG* 17.4 2,400 N/A 4.6 1,000 1,750 600 1,000 1,000 300 300
    HIP-08WG* 25.6 3,360 N/A 7.1 1,200 1,930 700 1,000 1,000 300 300
    HIP-10WG* 34.9 5,100 N/A 9.4 1,400 2,100 750 1,000 1,100 300 300
    HIP-15WG* 52.3 7,200 N/A 14.5 1,600 2,100 900 1,000 1,300 300 300
    HIP-20WG* 69.7 9,600 N/A 20.0 1,700 2,430 900 1,000 1,400 300 300
    WATER COOLED DUCT INLET / DUCT OUTLET
    HIP-03WD* 10.5 1,800 350 3.1 1,000 1,520 600 1,000 1,000 300 300
    HIP-05WD* 17.4 2,400 350 4.9 1,000 1,520 650 1,000 1,000 300 300
    HIP-08WD* 25.6 3,360 350 8.2 1,200 1,800 700 1,000 1,000 300 300
    HIP-10WD* 34.9 5,100 350 11.1 1,400 2,000 750 1,000 1,100 300 300
    HIP-15WD* 52.3 7,200 350 16.8 1,600 2,150 900 1,000 1,300 300 300
    HIP-20WD* 69.7 9,600 350 22.2 1,700 2,100 900 1,000 1,400 300 300
    WATER COOLED GRILLE INLET / DUCT OUTLET
    HIP-03WM* 10.5 1,800 350 3.1 1,000 1,520 600 1,000 1,000 300 300
    HIP-05WM* 17.4 2,400 350 4.9 1,000 1,520 650 1,000 1,000 300 300
    HIP-08WM* 25.6 3,360 350 8.2 1,200 1,800 700 1,000 1,000 300 300
    HIP-10WM* 34.9 5,100 350 11.1 1,400 2,000 750 1,000 1,100 300 300
    HIP-15WM* 52.3 7,200 350 16.8 1,600 2,150 900 1,000 1,300 300 300
    HIP-20WM* 69.7 9,600 350 22.2 1,700 2,150 900 1,000 1,400 300 300
  • DOCUMENTS

    For more information, please contact the sales manager.
