SCRUBBER

SCRUBBER

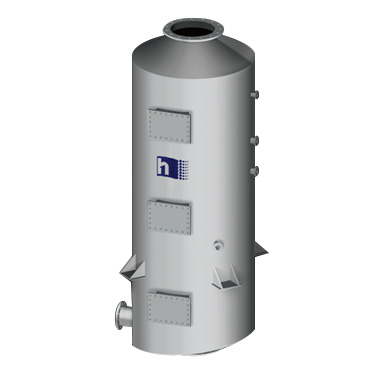

HI AIR KOREA(HAK) could serve clients the marine SCRUBBER of special features:
- Cost Effective as an exclusive Open-Loop System
- Less Energy Consumption by minimizing scrubbing sea water on account of patented technology.
- Space Adaptive by simple In-Line type with vertical or horizontal gas inlet manifold system.
- Short Lead Time by processing optimization.

  • FEATURES

    Special Features

    HI AIR SOx Scrubber is favored by

    • Space Adaptive
      • Compact Dimension
      • Flexible Installation
    • Operation Friendly
      • Simple Construction
      • User Oriented HMI
    • Optimized for Open Loop operation
    • Cost Effective
      • Low water consumption by
      • High-Residensing gas flow and
      • Spray pattern (Patented)

    Flexible Installation

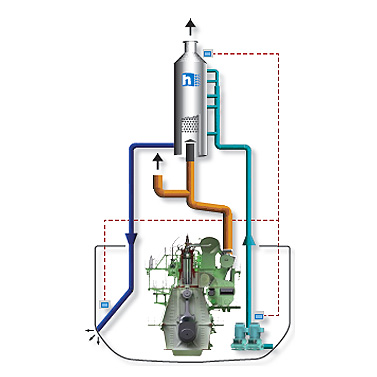

    HI AIR enables the flexible installation of I-Type scrubber in confined funnel/ casing, Above or Aside of Exhaust gas boiler by novel design of exhaust gas manifold.

    WHY HI AIR Scrubbers?

    Most of cargo ships operate majority of time (about 90%) in open sea and HI AIR I-Type Open Loop Scrubbers optimized for 0.5% Sulphur requirement in Open Sea (Outside ECA) shall make the most of benefits :
    In the limited area, just switch over to compliant fuel oil.

    • Less Initial Cost
    • Less Space Occupied(I-type design combined with packing)
    • Simple & Easy operation

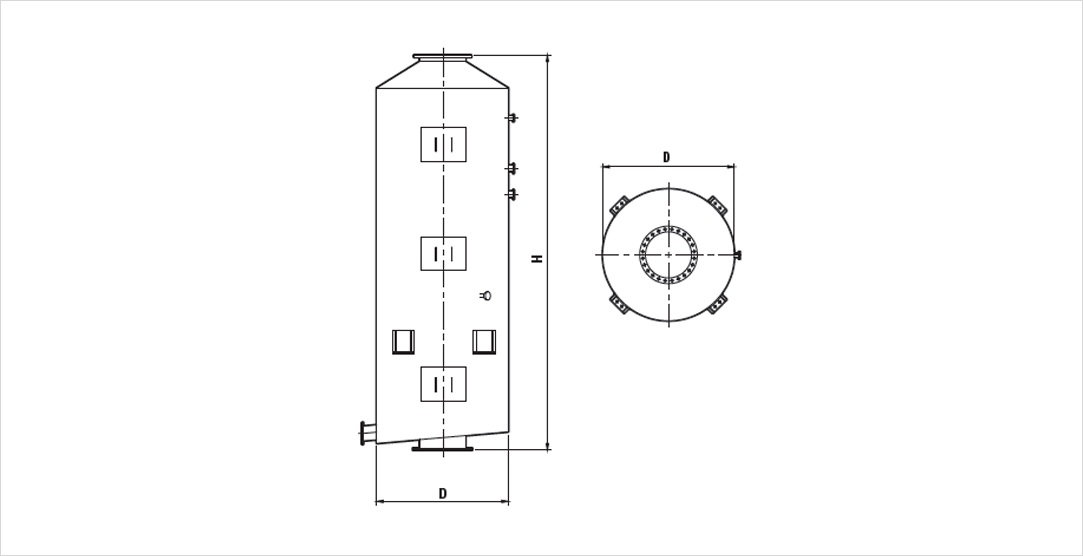

  • CAPACITIES
    POWER (MW) 6 8 10 13 16 22
    D (mm) 2300 2600 3000 3400 3700 4400
    H (mm) 7900 8100 8300 8900 9100 9300
    Appox. Weight (kg) , Dry 7200 8300 9100 11300 12400 14500
