HI AIR KOREA(HAK) AXIAL FLOW FAN of naval ship is specially designed for use of naval ships. They are available in wide variety types and capacities and for all purposes.

The fans are built considering size, efficiency, reliability, maintainability and military standards.

HAK AXIAL FLOW FAN of naval ship is specifically manufactured to operate in various conditions of naval ship. Use of fans can maintain the desired room conditions by mechanical ventilation.

The AXIAL FLOW FAN of naval ship is satisfied with military standards of special performance.

  • FEATURES

    AWA

    • AWA (AXIAL FLOW FAN) is a robustly constructed fan with a downstream guide vane arrangement designed for duct in-line installation.
    • AXIAL FLOW FAN impellers are manufactured by combination of various parts in order to adjust blade angle for best performance, efficiency and sound level.
    • Impeller hub shell and blades are manufactured by aluminium alloy.
    • Impeller diameters from 250 to 1,120 mm and hub diameters from 150 to 560 mm.
    • The air flow rate covers from 160 ㎥/h to 66,000 ㎥/h.
    • Airborne Noise Criteria for AXIAL FLOW FAN : MIL-PRF-18953C

    HPF

    • HPF (HIGH PRESSURE FAN) is used for NBCD System(Nuclear, Biological, & Chemical Defense) and robustly constructed with a downstream guide vane arrangement designed for duct in-line installation.
    • HIGH PRESSURE FAN impellers are manufactures by aluminium alloy casting for best performance, efficiency and sound level.
    • Pressurization is created by the ventilation system to block the inflow of the CBR contamination in the naval ship.
    • The air flow rate covers from 4,080 ㎥/h to 9,180 ㎥/h.
    • Airborne Noise Criteria for HIGH PRESSURE FAN : MIL-PRF-24755B

    QUALITY CONTROL

    • Impact test : MIL-STD-901D
    • Vibration test : MIL-STD-167-1A
    • Noise test : MIL-STD-740-1/2
  • OPTIONS
    • Flexible connection
    • Counter flange
    • Silencer
    • Mushroom ventilator
    • Ex-proof design
  • CAPACITIES
    No. Fan Type Air flow rate Static pressure Motor output
    (㎥/h) (mmAq) (kW)
    1 AWA-0250 160 ~ 1,000 10 ~ 30 0.4 / 0.75
    2 AWA-0350 400 ~ 4,000 10 ~ 60 0.75 / 1.5
    3 AWA-0400 1,000 ~ 7,000 10 ~ 70 0.4 / 1.5 / 2.2
    4 AWA-0500 2,400 ~ 8,000 10 ~ 80 3.7
    5 AWA-0560 3,000 ~ 12,000 10 ~ 45 2.2
    6 AWA-0630 4,800 ~ 18,000 10 ~ 55 3.7 / 5.5
    7 AWA-0710 15,000 ~ 24,000 10 ~ 55 5.5 / 7.5
    8 AWA-0800 15,000 ~ 30,000 10 ~ 60 7.5 / 11.0
    9 AWA-0900 24,000 ~ 42,000 10 ~ 70 11.0 / 15.0
    10 AWA-1000 30,000 ~ 54,000 10 ~ 80 15.0 / 18.5 / 22.0
    11 AWA-1120 54,000 ~ 66,000 10 ~ 70 22.0 / 30.0
    12 A103 4,080 356 11.0
    13 A104 6,120 356 11.0
    14 A105 9,180 356 15.0

    AWA

    Unit : [mm]

    SPEC' ØA ØB H
    MODEL (I.D) (O.D)
    AWA-0250 254 356 400
    AWA-0350 360 460 400
    AWA-0400 400 498 400
    450
    500
    AWA-0500 500 622 500
    AWA-0560 560 682 520
    AWA-0630 630 752 520
    620
    650
    AWA-0710 710 832 520
    710
    AWA-0800 800 922 800
    AWA-0900 900 1,022 800
    AWA-1000 1,000 1,152 800
    AWA-1120 1,120 1,272 1,000

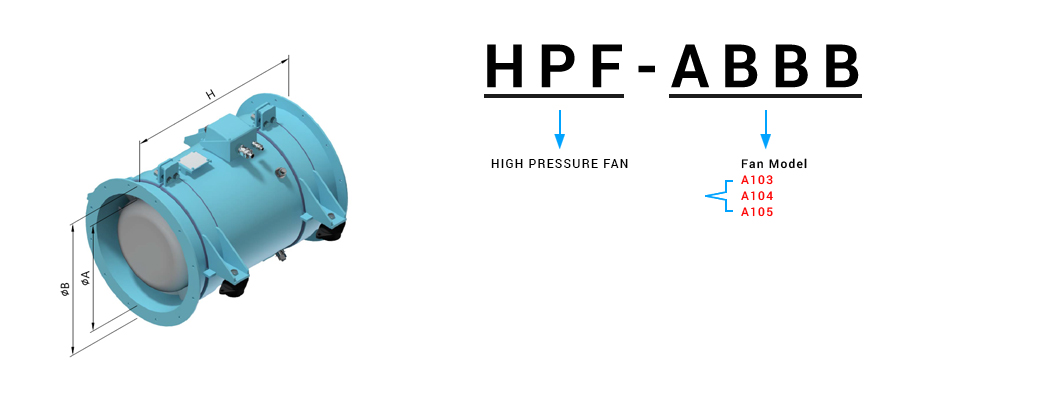

    HPF

    Unit : [mm]

    SPEC' ØA ØB H
    MODEL (I.D) (O.D)
    A103 560 682 840
    A104 560 682 840
    A105 550 682 890
  • DOCUMENTS

    For more information, please contact the sales manager.

    2 NAVY_VENTILATION_AXIAL FLOW FAN DOWNLOAD
    1 Sample drawing DOWNLOAD
