SPECIAL AXIAL FLOW FAN

HI AIR KOREA(HAK) SPECIAL AXIAL FLOW FAN is specially designed for robust design with high efficiency.
They are available in wide variety all types and capacities and for all purposes.

The SPECIAL AXIAL FLOW FAN is built considering size, efficiency, reliability and maintainability. The SPECIAL AXIAL FLOW FAN is cost effective solution that can comply with the stringiest requirements of global standards.

HAK SPECIAL AXIAL FLOW FAN is specifically constructed to operate in various such as offshore conditions. Use of SPECIAL AXIAL FLOW FAN can provide suitable ventilation for spaces which might occur explosive gases and are designed according to the rules of the classification societies for ”Non-sparking fans for hazardous locations on board ships”

  • FEATURES

    GENERAL

    • HI AIR KOREA AXIAL FLOW FAN impellers are manufactured by combination of various parts in order to adjust blade angle for best performance, fan efficiency and sound level.
    • Impeller hub shell and blades are manufactured by Aluminium alloy.

    HCA

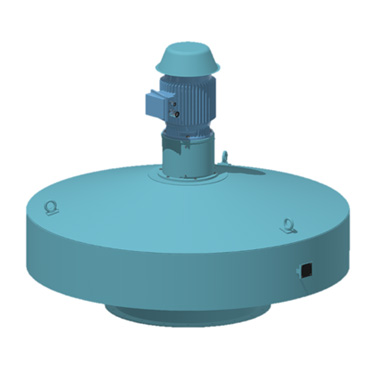

    • HCA(Mushroom type AXIAL FLOW FAN) is applicable for ventilation of battery room exhaust for downward discharge with explosion-proof motor installed out of air flow.
    • The standard range comprises 11 sizes with impeller diameters from 300 to 1,120 mm and 5 hub diameters from 150 to 500 mm.
  • OPTIONS
    • Counter flange
    • Counter flange with protection screen
    • Ex-proof design
  • CAPACITIES

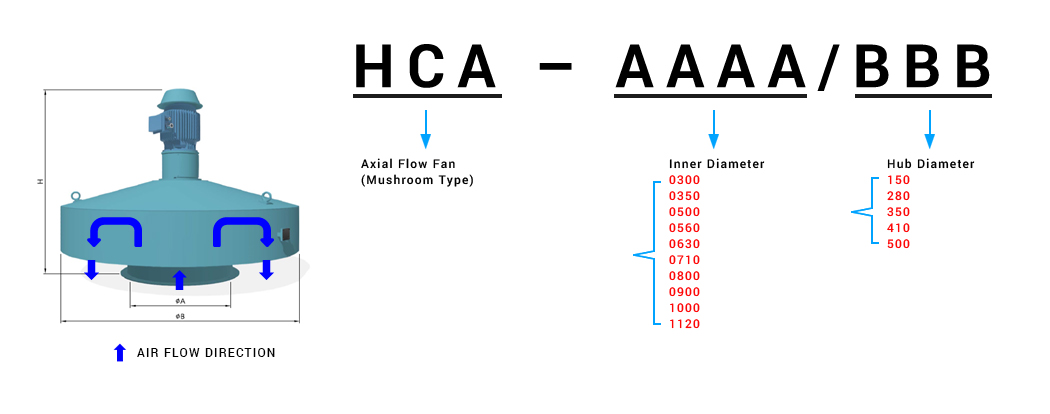

    HCA

    Unit : [mm]

    SPEC' ØA ØB H
    MODEL (I.D) (O.D)
    HCA-0300 305 720 840
    HCA-0350 360 755 840
    HCA-0400 400 900 1,075
    HCA-0500 500 1,100 1,280
    HCA-0560 560 1,260 1,370
    HCA-0630 630 1,400 1,420
    HCA-0710 710 1,580 1,520
    HCA-0800 800 1,760 1,690
    HCA-0900 900 2,000 1,900
    HCA-1000 1,000 2,224 2,000
    HCA-1120 1,120 2,436 2,230
  • DOCUMENTS

    For more information, please contact the sales manager.

    2 OFFSHORE_VENTILATION_SPECIAL AXIAL FLOW FAN DOWNLOAD
    1 Sample drawing DOWNLOAD
