AIR HANDLING
AIR HANLDING UNIT
HI AIR KOREA(HAK) AIR HANDLING UNIT is designed to optimally operate in some of the harsh conditions in Industrial Plants.
HAK Industry plant AIR HANDLING UNIT is specifically constructed to operate in various applications such as Thermal Power Plants, Refineries and Petrochemical Plants, Desalination Plants and Commercial Buildings considering size, efficiency, reliability and maintainability.
The industrial HVAC system filters unpleasant odors, corrosive organic chemical gases, provides sterilized air or pressurization according to the architectural use to the room. The unit is developed in close cooperation with major customers, able to meet the most demanding requirements.
Truly a customizable unit for every application!
-

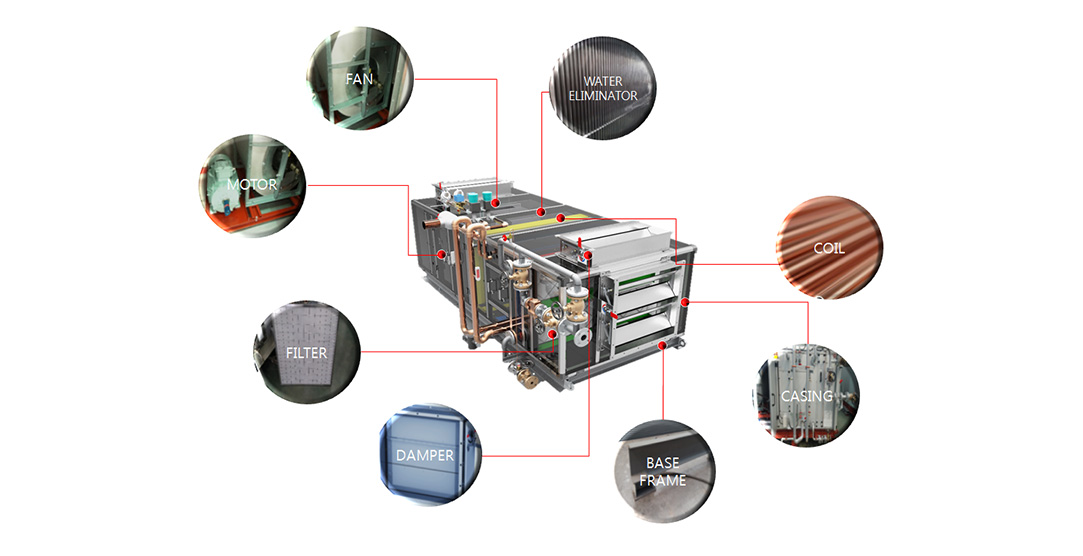

FEATURES
CASING
- 0.6~1.2 mm thick double skinned panels made of galvanized steel internal wall and external wall
- Panels of 50 mm thickness with rock wool insulation
BASE FRAME
- The base frame is made of carbon steel
- Rigid in designed to support all components during shipping, lifting and operation
- Spaces between the frame are also considered for installation of drain piping
DAMPER
- Manual or motorized shut-off dampers can be provided on all AIR HANDLING UNIT inlet and outlet(Aluminum)
FILTER
- 2 Stage filtration system
- 1st Stage pre filter of MERV 5~6(AFI 80~90 %) Panel Type
- 2nd Stage medium filter of MERV 13~14(NBS 80~95 %) Single Header Flange Type
COIL
- Coils available are for heating and cooling
- Copper tube with aluminum fins
- Cooling medium : HFC refrigerants(R-407C, R-134a), Chilled water
- Heating medium : Steam, Hot water, Electric heater
HUMIDIFIER
- Humidification method : Evaporated type, Electrode type, Steam Injection
FAN
- Centrifugal type
- Double width double inlet
- V-belt driven, complete with fan belt guard
MOTOR
- Minimum IE 2 efficiency
- Cast iron casing
- IP 54/55/56/65 protection
- Power supply : 380/400/415/440/460/480Vac, 50/60Hz, 3-phase
-
OPTIONS
CASING
- Double skinned panels made of SS316L or SS304 internal wall and external wall
- Panels of 25~40 mm thickness with rock wool insulation
FAN & MOTOR
- Spark proof fans
- Direct driven plenum fans for AIR HANDLING UNIT
- Explosion proof motors
- Return fan & motor assembly
ADDITIONAL COMPONENTS
- Dampers for supply, return and fresh, exhaust air connection(SS304 or SS316L)
- Pre filter(MERV7~8), Medium Filter(MERV15)
- Cooling coil : Copper tube with copper fins , anti corrosion coating
- SS304 or SS316L Water trap
- Aluminum water eliminator(Recommended when face velocity is over 2.54 m/s)
- Windows on doors and lamps with switch for inspection and maintenance
- Other refrigerants are available
-

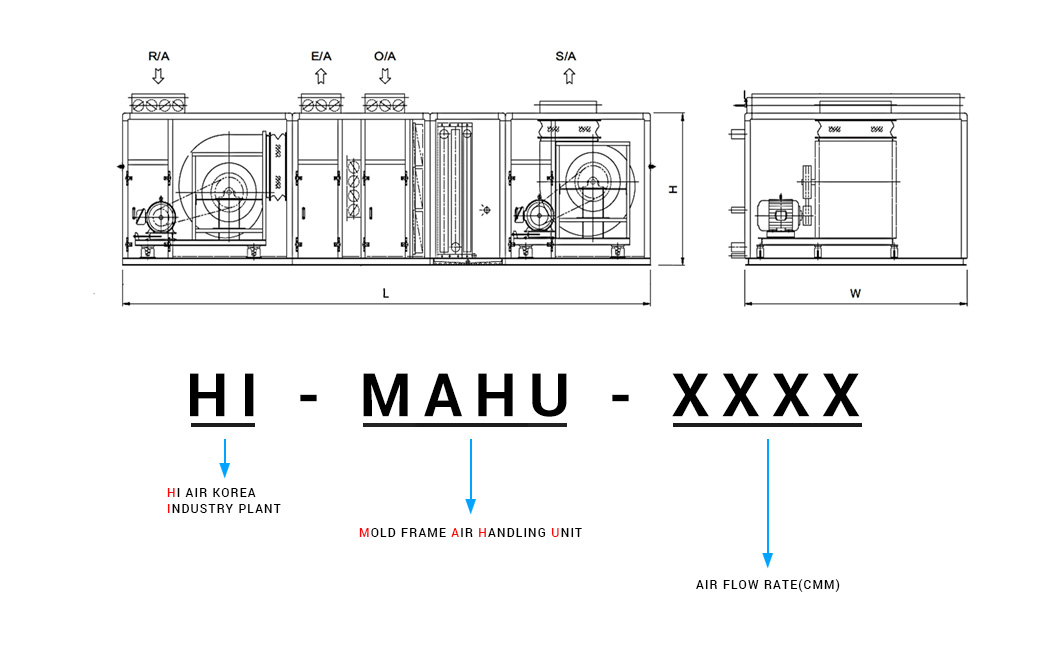

CAPACITIES
MODEL NO. SUPPLY AIR FAN RETURN AIR FAN COOLING CAPACITY HEATING CAPACITY DIMENSION
(mm)WEIGHT ㎥/min Pa ㎥/min Pa kcal/hr kW usRT kcal/hr kW L W H kg HI-MAHU-0083 83 800 70 400 24,000 28 8 14,000 17 4,800 1,200 1,150 1,450 HI-MAHU-0110 110 800 94 400 32,000 37 11 19,000 22 4,850 1,400 1,200 1,950 HI-MAHU-0165 165 800 140 400 47,000 55 16 28,000 33 5,100 1,700 1,300 2,200 HI-MAHU-0220 220 800 187 400 63,000 73 21 38,000 44 5,300 1,700 1,450 2,550 HI-MAHU-0275 275 900 234 450 78,000 91 26 47,000 55 5,300 1,900 1,450 3,000 HI-MAHU-0330 330 900 281 450 94,000 109 31 56,000 65 5,500 2,100 1,600 3,300 HI-MAHU-0385 385 900 327 450 110,000 127 37 66,000 76 5,800 2,150 1,850 3,750 HI-MAHU-0440 440 900 374 450 125,000 146 42 75,000 87 5,950 2,500 1,850 4,500 HI-MAHU-0550 550 900 468 450 156,000 182 52 93,000 109 6,150 2,750 1,850 4,950 HI-MAHU-0660 660 1,000 561 500 188,000 218 62 112,000 130 6,300 3,000 2,100 5,400 HI-MAHU-0770 770 1,000 655 500 219,000 254 73 131,000 152 6,810 3,150 2,250 6,450 HI-MAHU-0880 880 1,000 748 500 250,000 291 83 149,000 173 7,000 3,400 2,450 7,000 HI-MAHU-0990 990 1,000 842 500 281,000 327 93 168,000 195 7,500 3,550 1,600 8,150 HI-MAHU-1100 1,100 1,000 935 500 312,000 363 104 186,000 217 7,550 3,900 2,600 9,500 HI-MAHU-1210 1,210 1,100 1,029 550 344,000 400 114 205,000 238 7,050 4,000 2,800 10,500 HI-MAHU-1320 1,320 1,100 1,122 550 375,000 436 124 224,000 260 7,300 4,200 2,800 11,500 HI-MAHU-1430 1,430 1,100 1,216 550 406,000 472 135 242,000 282 7,300 4,300 2,950 12,400 HI-MAHU-1540 1,540 1,100 1,309 550 437,000 508 145 261,000 303 7,500 4,500 2,950 13,700 -
The figures can be changed as per the client's requirements.
- Cooling coil Inlet condition 27.0 ℃ DB, 21.0 ℃ WB, outlet condition 14.2 ℃ DB, 13.2 ℃ WB
-
The figures can be changed as per the client's requirements.
-
