SPECIAL AXIAL FLOW FAN

HI AIR KOREA(HAK) SPECIAL AXIAL FLOW FAN is specially designed for robust design with high efficiency. They are available in wide variety all types and capacities and for all purposes.

The SPECIAL AXIAL FLOW FAN is built considering size, efficiency, reliability and maintainability. The SPECIAL AXIAL FLOW FAN is cost effective solution that can comply with the stringiest requirements of global standards.

HAK SPECIAL AXIAL FLOW FAN is specifically constructed to operate in various such as marine conditions. Use of SPECIAL AXIAL FLOW FAN can provide suitable ventilation for spaces which might occur explosive gases and are designed according to the rules of the classification societies for ”Non-sparking fans for hazardous locations on board ships”

  • FEATURES

    GENERAL

    • HI AIR KOREA AXIAL FLOW FAN impellers are manufactured by combination of various parts in order to adjust blade angle for best performance, fan efficiency and sound level.
    • Impeller hub shell and blades are manufactured by aluminium alloy.

    MNA

    • MNA(Bifurcated type AXIAL FLOW FAN) is applicable for ventilation of hazardous areas for upward discharge with explosion-proof motor installed out of air flow.
    • The standard range comprises 11 sizes with impeller diameters from 500 to 1,600 mm and 6 hub diameters from 280 to 710 mm.

    HCA

    • HCA(Mushroom type AXIAL FLOW FAN) is applicable for ventilation of hazardous areas for downward discharge with explosion-proof motor installed out of air flow.
    • The standard range comprises 11 sizes with impeller diameters from 300 to 1,120 mm and 5 hub diameters from 150 to 500 mm.

    ELA

    • ELA(Elbow type AXIAL FLOW FAN) is applicable for ventilation of hazardous areas elbow discharge with explosion-proof motor installed out of air flow.
    • The standard range comprises 4 sizes with impeller diameters from 300 to 500 mm and 3 hub diameters from 150 to 350 mm.

    MXA

    • MXA(Bifurcated type AXIAL FLOW FAN) is applicable for ventilation for ventilation of hazardous areas for upward discharge with explosion-proof motor installed out of air flow.
    • The standard range comprises 10 sizes with impeller diameters from 500 to 1400 mm and 5 hub diameters from 280 to 710 mm.
  • OPTIONS
    • Counter flange
    • Counter flange with protection screen
    • Silencer
    • Closing damper
    • Ex-proof design
  • CAPACITIES

    MNA

    Unit : [mm]

    SPEC' ØA ØB H
    MODEL (I.D) (O.D)
    MNA-0500 500 960 1,200
    MNA-0560 560 1,060 1,236
    MNA-0630 630 1,170 1,266
    MNA-0710 710 1,317 1,406
    MNA-0800 800 1,460 1,606
    MNA-0900 900 1,608 1,716
    MNA-1000 1,000 1,768 1,871
    MNA-1120 1,120 1,980 2,001
    MNA-1250 1,250 2,186 2,196
    MNA-1400 1,400 2,500 2,326
    MNA-1600 1,600 2,732 2,717

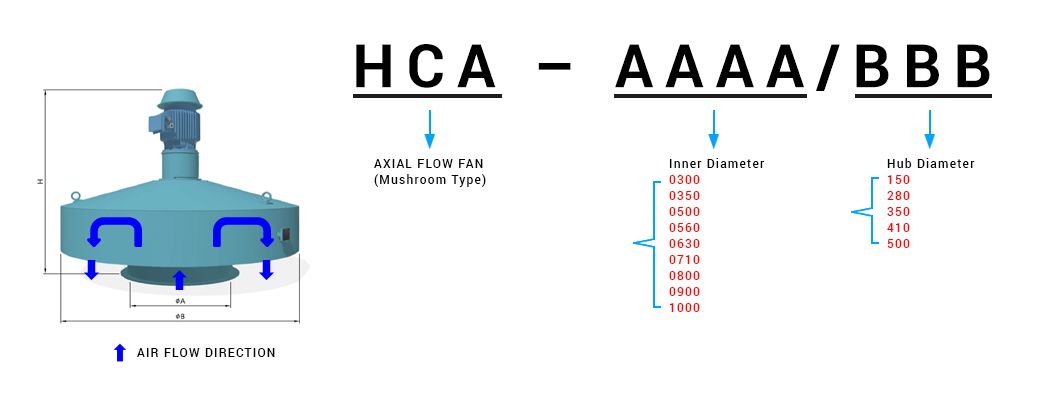

    HCA

    Unit : [mm]

    SPEC' ØA ØB H
    MODEL (I.D) (O.D)
    HCA-0300 305 720 840
    HCA-0350 360 755 840
    HCA-0400 400 900 1,075
    HCA-0500 500 1,100 1,280
    HCA-0560 560 1,260 1,370
    HCA-0630 630 1,400 1,420
    HCA-0710 710 1,580 1,520
    HCA-0800 800 1,760 1,690
    HCA-0900 900 2,000 1,900
    HCA-1000 1,000 2,224 2,000
    HCA-1120 1,120 2,436 2,230

    ELA

    Unit : [mm]

    SPEC' ØA B H
    MODEL (I.D)
    ELA-0300 298 1,035 1,250
    ELA-0350 337 1,160 1,300
    ELA-0400 388 1,300 1,425
    ELA-0500 489 1,600 1,765

    MXA

    Unit : [mm]

    SPEC' ØA ØA1 ØB ØC ØC1 H
    MODEL (I.D) (I.D) (I.D) (O.D) (O.D)
    MXA-0500 500 630 885 622 752 1,280
    MXA-0560 560 710 990 682 832 1,385
    MXA-0630 630 800 1,060 752 922 1,475
    MXA-0710 710 900 1,160 832 1,022 1,511
    MXA-0800 800 1,000 1,300 922 1,152 1,685
    MXA-0900 900 1,120 1,460 1,022 1,272 1,960
    MXA-1000 1,000 1,250 1,620 1,152 1,402 2,145
    MXA-1120 1,120 1,400 1,810 1,272 1,552 2,368
    MXA-1250 1,250 1,600 2,020 1,402 1,752 2,621
    MXA-1400 1,400 1,800 2,260 1,552 1,974 3,020
    MXA-1600 1,600 2,000 2,580 1,752 2,152 3,365
