OFFSHORE

COOLING

CONDENSING UNIT FOR AC

HI AIR KOREA(HAK) offers efficient cooling plants for smaller and medium size air conditioning requirements thru its CONDENSING UNIT line up.

Offshore CONDENSING UNIT of this type is available in various sizes for fresh and sea water cooling. The cooling capacities are ranging from 81 to 631 kW.

Compact light weight design made of high quality material, and integrated with best performing components. The open type compressor is v-belt driven while the semi-hermetic type is direct driven. The shell-and-tube condensers are intended for fresh or sea water cooling.

Take advantage of HAK CONDENSING UNIT simplified cooling system!

  • FEATURES

    SELECTION

    • Wide range of cooling capacities from 81 to 631 kW
    • Customizable design for offshore applications

    CONSTRUCTION

    • High quality integrated components for maximum reliability
    • Robust shell-and-tube condensers for fresh water
    • Capacity regulation for smooth operation without experiencing short cycle during part load conditions
    • Equipped with refrigerant filter and drier system
    • Vibration eliminators and flexible connections for both refrigerant and water pipes
    • Simple and compact design good for onboard space limitations
    • Environmental friendly design complying with international Classification societies
    • HFC refrigerants : R-404A, R-407C, R-134a
    • Power supply : 380/440/690Vac, 50/60Hz, 3-phase
    • PLC system

    MAINTENANCE

    • Easy installation and maintenance
  • OPTIONS
    • Robust shell-and-tube condenser for sea water
    • Additional safety devices such as liquid separator
    • Applicable cooling capacity over 632 kW
    • Other refrigerants are available
  • CAPACITIES

    JCI(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 7.5 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K

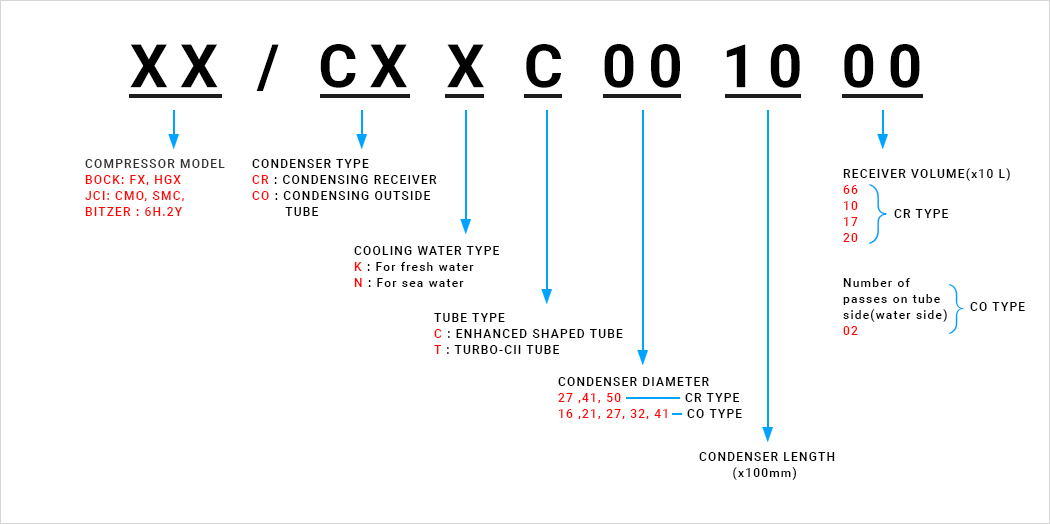

    MODEL CMO24/
    CRKT 411910-D
    CMO26/
    CRKT 411910-V
    CMO26/
    CRKT 411910-D
    CMO28/
    CRKT 411910-V
    CMO28/
    CRKT 501917-V
    COOLING CAPACITY  kW  96 122 144 156 166
    COMPRESSOR  MODEL  CMO24  CMO26  CMO26  CMO28  CMO28
    CONDENSER  MODEL  CRKC 411910  CRKC 411910  CRKC 411910  CRKC 411910  CRKC 501917
    COND. TEMP.  ℃  45 45 45 45 45
    WATER FLOW  ㎥/h  44 44 44 44 73
    MOTOR POWER  kW  34.5 43 52 63 52
    DIMENSION  LENGTH 2,315 2,330 2,315 2,340 2,340
    (mm)
    WIDTH 680 575 680 585 655
    (mm)
    HEIGHT 1,392 1,427 1,392 1,430 1,525
    (mm)
    PRODUCT WEIGHT(Dry)  kg  1,280 1,480 1,300 1,495 1,730

    JCI(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 7.5 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K
    MODEL CMO28/
    CRKT 501917-D
    CMO38/
    CRKT 501917-D
    SMC106/
    CRKT 501917-V
    SMC106/
    CRKT 502320-V
    SMC106/
    CRKT 502320-D
    COOLING CAPACITY  kW  200 208 251 299 330
    COMPRESSOR  MODEL  CMO28  CMO38  SMC106  SMC106  SMC106
    CONDENSER  MODEL  CRKT 501917  CRKT 501917  CRKT 501917  CRKT 502320  CRKT 502320
    COND. TEMP.  ℃  45 45 45 45 45
    WATER FLOW  ㎥/h  73 73 73 73 73
    MOTOR POWER  kW  63 86 86 104 104
    DIMENSION  LENGTH TBA  TBA  2,355 2,775 2,945
    (mm)
    WIDTH TBA  TBA  785 785 810
    (mm)
    HEIGHT TBA  TBA  1,690 1,690 1,730
    (mm)
    PRODUCT WEIGHT(Dry)  kg  TBA  TBA  2,050 2,110 2,380

    JCI(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 7.5 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K
    MODEL SMC106/
    CRKT 601925-D
    SMC108/
    CRKT 601925-V
    SMC108/
    CRKT 602331-V
    SMC108/
    CRKT 602331-D
    SMC112/
    CRKT 602331-D
    COOLING CAPACITY  kW  353 373 393 467 482
    COMPRESSOR  MODEL  SMC106  SMC108  SMC108  SMC108  SMC112
    CONDENSER  MODEL  CRKT 601925  CRKT 601925  CRKT 602331  CRKT 602331  CRKT 602331
    COND. TEMP.  ℃  45 45 45 45 45
    WATER FLOW  ㎥/h  110 110 110 110 110
    MOTOR POWER  kW  127 127 127 152 127
    DIMENSION  LENGTH TBA  TBA  TBA  TBA  TBA
    (mm)
    WIDTH TBA  TBA  TBA  TBA  TBA
    (mm)
    HEIGHT TBA  TBA  TBA  TBA  TBA
    (mm)
    PRODUCT WEIGHT(Dry)  kg  TBA  TBA  TBA  TBA  TBA

    JCI(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 7.5 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K
    MODEL SMC116/
    CRKT 602736-D
    COOLING CAPACITY  kW  631
    COMPRESSOR  MODEL  SMC116
    CONDENSER  MODEL  CRKT 602736
    COND. TEMP.  ℃  45
    WATER FLOW  ㎥/h  110
    MOTOR POWER  kW  180
    DIMENSION  LENGTH TBA
    (mm)
    WIDTH TBA
    (mm)
    HEIGHT TBA
    (mm)
    PRODUCT WEIGHT(Dry)  kg  TBA

    BITZER & BOCK(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 8.0 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K
    MODEL 6H.2Y/
    COKT161502
    6H.2Y/
    COKT161902
    FX76-1570/
    COKT 211502
    FX76-1800/
    COKT 211502
    COOLING CAPACITY  kW  107 136 155 178
    COMPRESSOR  MODEL  6H.2Y  6H.2Y  FX76-1570  FX76-1800
    CONDENSER  MODEL  COKT 161502  COKT 161902  COKT 211502  COKT 211502
    COND. TEMP.  ℃  45 45 45 45
    WATER FLOW  ㎥/h  25 25 44 44
    MOTOR POWER  kW  48.3 48.7 48.8 48.7
    DIMENSION  LENGTH TBA  TBA  TBA  TBA
    (mm)
    WIDTH TBA  TBA  TBA  TBA
    (mm)
    HEIGHT TBA  TBA  TBA  TBA
    (mm)
    PRODUCT WEIGHT(Dry)  kg  TBA  TBA  TBA  TBA

    BITZER & BOCK(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 8.0 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K
    MODEL FX76-2050/
    COKT 271502
    FX76-2425/
    COKT 271502
    FX18-2735/
    COKT 271902
    FX18-3235/
    COKT 321902
    COOLING CAPACITY  kW  208 247 275 336
    COMPRESSOR  MODEL  FX76-2050  FX76-2425  FX18-2735  FX18-3235
    CONDENSER  MODEL  COKT 271502  COKT 271502  COKT 271902  COKT 321902
    COND. TEMP.  ℃  47.2 47.4 48.2 46.7
    WATER FLOW  ㎥/h  73 73 73 110
    MOTOR POWER  kW  63 63 86 86
    DIMENSION  LENGTH TBA  TBA  TBA  TBA
    (mm)
    WIDTH TBA  TBA  TBA  TBA
    (mm)
    HEIGHT TBA  TBA  TBA  TBA
    (mm)
    PRODUCT WEIGHT(Dry)  kg  TBA  TBA  TBA  TBA

    BITZER & BOCK(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 8.0 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K
    MODEL HGX6/1240-4S/
    COKT 161502
    HGX6/1410-4S/
    COKT 161902
    HGX7/1620-4S/
    COKT 211502
    HGX7/1860-4S/
    COKT 211902
    COOLING CAPACITY  kW  109 125 140 160
    COMPRESSOR  MODEL  HGX6/1240-4S  HGX6/1410-4S  HGX7/1620-4S  HGX7/1860-4S
    CONDENSER  MODEL  COKT 161502  COKT 161902  COKT 211502  COKT 211502
    COND. TEMP.  ℃  50.8 50.6 48.3 48.2
    WATER FLOW  ㎥/h  25 25 44 44
    MAX. POWER CONSUMPTION  kW  36 42.6 46.3 53.3
    DIMENSION  LENGTH TBA  TBA  TBA  TBA
    (mm)
    WIDTH TBA  TBA  TBA  TBA
    (mm)
    HEIGHT TBA  TBA  TBA  TBA
    (mm)
    PRODUCT WEIGHT(Dry)  kg  TBA  TBA  TBA  TBA

    BITZER & BOCK(Open reciprocating type)

    STANDARD TYPE FOR CONDENSING UNIT
    • REFRIGERANT : R-407C, POWER : 440Vac/3Ph/60Hz, EVAPORATIVE TEMP. : 8.0 ℃
    • COOLING WATER : 36 ℃, SUPERHEAT : 10 K
    MODEL HGX7/2110-4S/
    COKT 271502
    HGX8/2470-4S/
    COKT 271902
    HGX88e/
    2735-4SCOKT 271902
    HGX88e/
    3235-4SCOKT 321902
    COOLING CAPACITY  kW  186 220 255 303
    COMPRESSOR  MODEL  HGX7/2110-4S  HGX8/2470-4S  HGX88e/2735-4S  HGX88e/3235-4S
    CONDENSER  MODEL  COKT 271502  COKT 271902  COKT 271902  COKT 321902
    COND. TEMP.  ℃  46.8 46.9 47.8 46.1
    WATER FLOW  ㎥/h  73 73 73 110
    MAX. POWER CONSUMPTION  kW  60.5 72.5 93.4 109.7
    DIMENSION  LENGTH TBA  TBA  TBA  TBA
    (mm)
    WIDTH TBA  TBA  TBA  TBA
    (mm)
    HEIGHT TBA  TBA  TBA  TBA
    (mm)
    PRODUCT WEIGHT(Dry)  kg  TBA  TBA  TBA  TBA
  • DOCUMENTS

    For more information, please contact the sales manager.

    2 OFFSHORE_CODENSING UNIT FOR AC DOWNLOAD
    1 Sample drawing DOWNLOAD
